XBRIDGE™

Transfer LoRaWAN decoded sensor data directly to your PLC’s using the built-in modbus/TCP protocol.

FINALLY! Transfer decoded LoRaWAN sensor data directly to your PLC’s or SCADA system using the built-in modbus/TCP protocol. The XBRIDGE™ gateway is the perfect tool for building a private lorawan network and make a secure bridge between LoRaWAN sensors and your existing automation equipment.

You can make huge savings on sensor installation, we provide a smooth way to avoid cost for cables, electricians excavator e.t.c. Send encrypted sensor data 5-10 km over the air, the XBRIDGE™ gateway receive data from the wireless sensors and transfer the decoded sensor values to a user defined holding register in a PLC. A user friendly software dialog let you pair each LoRaWAN devEUI, with the receiving PLC’s IP-number, port and your chosen modbus register.

The Xbridge have a webinterface where you can add the sensors which you want to transfer

Modbus register screenshoot

Add sensors to the system and choose payload decoder.

World famous sensors are supported and automatically decoded(70+), more sensors are added continuously and on demand. Elsys, Decentlab, Aduenis, DigitalMatter, MCF88, Infinite informatics, Axioma, Sensative, Ewantech, uRADMONITOR, Ellenex, Tectelic, BroWAN, Power-ADAPT, Netvox, NASYS, Ursalink and more

If you have further questions don’t hesitate to call us or send us an email. +46 500 6000 22 or +46 733 165100 or info@iot-ab.se hashtag#iot

hashtag#lorawan hashtag#sensor hashtag#automation hashtag#PLC hashtag#SCADA hashtag#proptech

Key Features

  • Refreshed Case design with a new strong MCU
  • Preassembled, fully functioning LoRaWAN Gateway
  • Full LoRaWAN Stack support
  • Supports for 8 channels and spreading factors (SF7-SF12)
  • Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
  • Tx Power: 27 dBm Max
  • RX Sensitivity: -139dBm
  • Integrates Ublox MAX-7Q GPS module
  • Quectel EG95 LTE module

Package Contents

  • non-LTE Variant
    • 1unit XBRIDGE™ LoRaWAN Gateway
    • 1pc LoRa Antenna
    • 1pc GPS Antenna
    • 1pc Power Adaptor
    • 1pc SD Card
  • LTE Variant
    • 1unit XBRIDGE™ LoRaWAN Gateway
    • 2 x LTE Antenna
    • 1pc LoRa Antenna
    • 1pc GPS Antenna
    • 1pc Power Adaptor
    • 1pc SD Card

Package Details

  • Product Dimensions: 50mm x 90mm x 90mm
  • Product Weight: 0.9kg

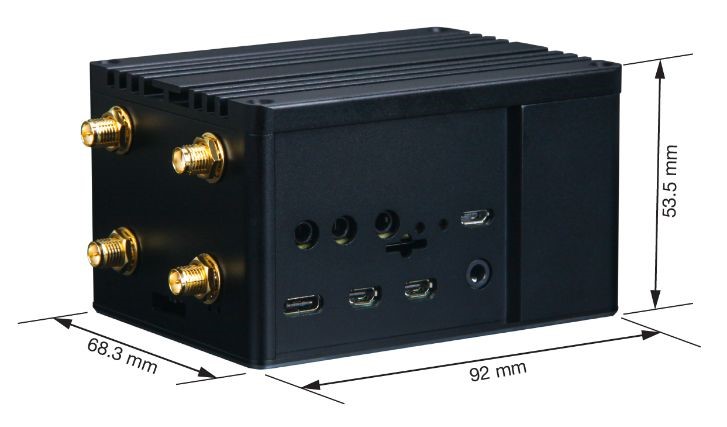

**Figure 1:** Outer Dimensions of RAK7244C
This is the only LoRawan gateway, including lorawan server, automatic payload decoder and modbus/TCP client in the woirld. Now you can Bridge LoRaWAN sensors with the automation world seamlessly
Left side
Front or up side
