Beskrivning

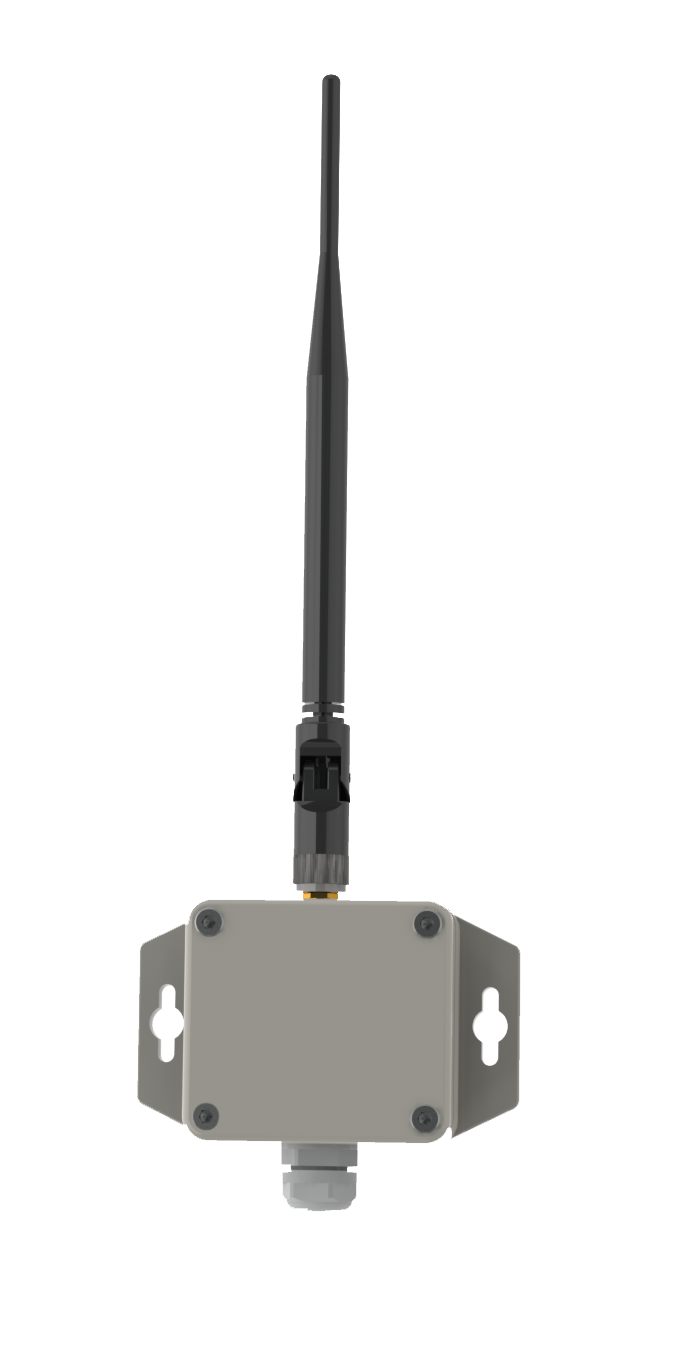

ELT-2-HP is a general LoRaWAN™ device that measures analogue or digital signals. The ELT-2-HP has a multi purpose input like the ELT-1, but also an additional I/O. ELT-2-HP can for example be used together with electricity meters, flow meters, analogue sensors, moisture sensors or temperature sensors. ELT-2-HP is enclosed in an IP67 box and is designed to be outside. Inside the ELT-2-HP you will find four internal sensors: A temperature sensor, a humidity sensor, an accelerometer, and an atmospheric pressure sensor. ELT-2-HP is powered by a 3,6V AA lithium battery(ER14505). The Battery life is estimated to be up to 10 years but depends on sample interval, transmit interval, data rate and environmental factors. You are welcome to use our online battery lifetime calculator. All Elsys sensors are equipped with NFC (Near Field Communication) for easy configuration with an Android phone. All of our sensors are built on the LoRaWAN™ stack from Semtech. Channel plans for US902-928, EU863-870, AS923, AU915-928, KR920-923.
Specification
- Analog 0-10V in
- Digital in
- Pulse counter
- Direct connection to S0 outputs
- Direct connection to Decagon moisture sensors
- Direct connection to external temperature sensor
- Water leak sensor input
- NFC for easy configuration
- Size: 94 x 59 x 35 mm
- Max output power: +20dBm
- Approx. range: 12km*
- Battery life: 10 years**
- 3.6V AA lithium battery
- US902-928, EU863-870,AS923,AU915-928,KR920-923
* LoRa™ modulation SF10
** Depending on interval
Supported external sensors:
- Analog input (0-10V)
- Pulse input (pullup/pulldown), e.g. power meters.
- DS18B20, 1-wire temperature sensor
- Switch/Button, normally open
- Digital input
- Meter 10HS,EC-5, water moisture sensor*
- Water leak sensor/cable
Do you miss support for any sensor? Get in touch, and we can probably solve it
