Liquid Level / Pressure, Temperature, Electrical Conductivity
0.00 kr
Liquid Level / Pressure, Temperature, Electrical Conductivity
Description
- Sensor device for single sensor
- LoRaWAN wireless communications
- 1 channel analog or digital data acquisition
- OTAA (Over-the-air activation) supported
- ADR (adaptive data rate) supported
- 1.8 – 6V power supply
- Lifetime of several years with 2 D-type batteries
- Robust outdoor enclosure
24 bit analog input
Pulse count input
Sensor specific digital interfaces (UART, I2C, RS-485)
Beskrivning

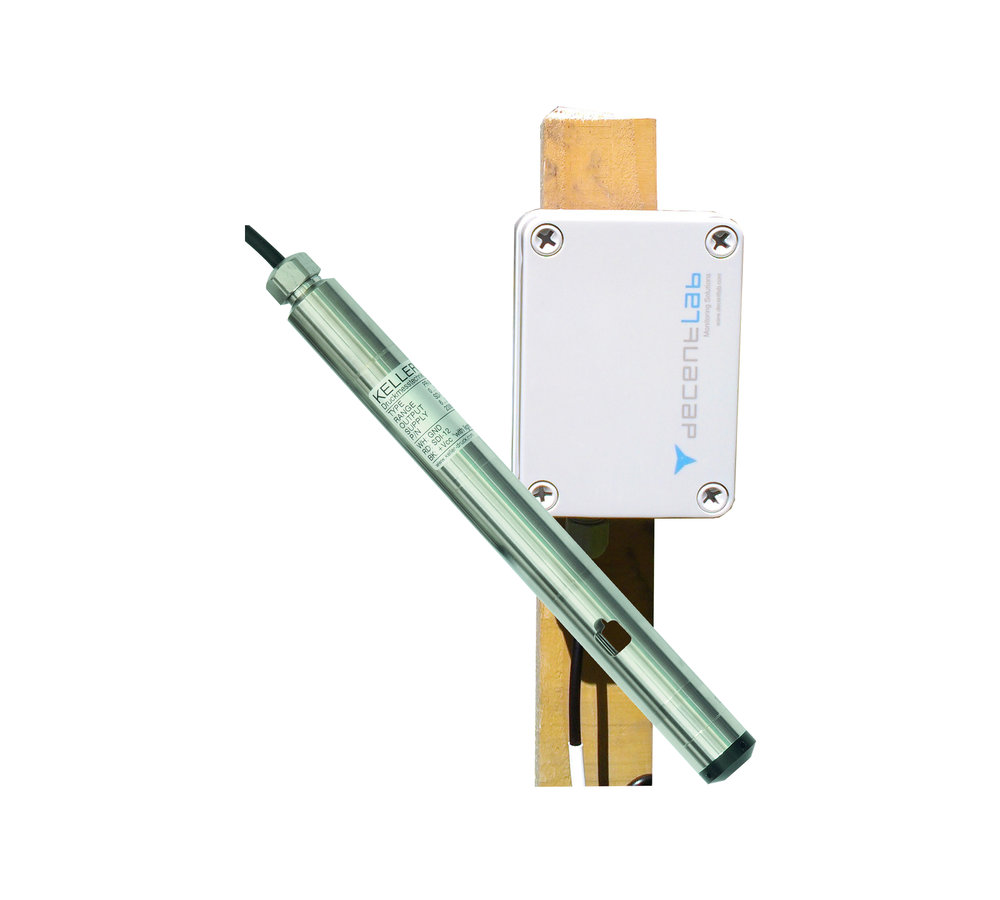

A floating piezoresistive sensor element measures pressure in liquids. It is a perfect sensor for a variety of long term water level monitoring applications.
This sensor is a cost-effective solution for applications where precision, low-power, and resistance rating is needed.
Absolute or relative pressure sensor for leveling
High resolutonn IP67 weather resistantn piezo resistve technology
Conductvity sensor
Ranges:
0,2 / 2 / 20 / 200 mS/cm
Accuracy 2,5{edbfe352f301579bb332dff86ced542172b0c80ed0c941f0c02cdd1fe307a783} of the selected measuring range
Pressure sensor
Relatve and absolute ranges:
0…0.3, 0…1, 0…3, 0…10, 0 … 30 bar
Temperature compensated
Accuracy ±0.1{edbfe352f301579bb332dff86ced542172b0c80ed0c941f0c02cdd1fe307a783} of full scale
Temperature sensor
Range: -20 … 80 °C
Accuracy 0n1 °C
10m cable, longer cable on request
