DESCRIPTION

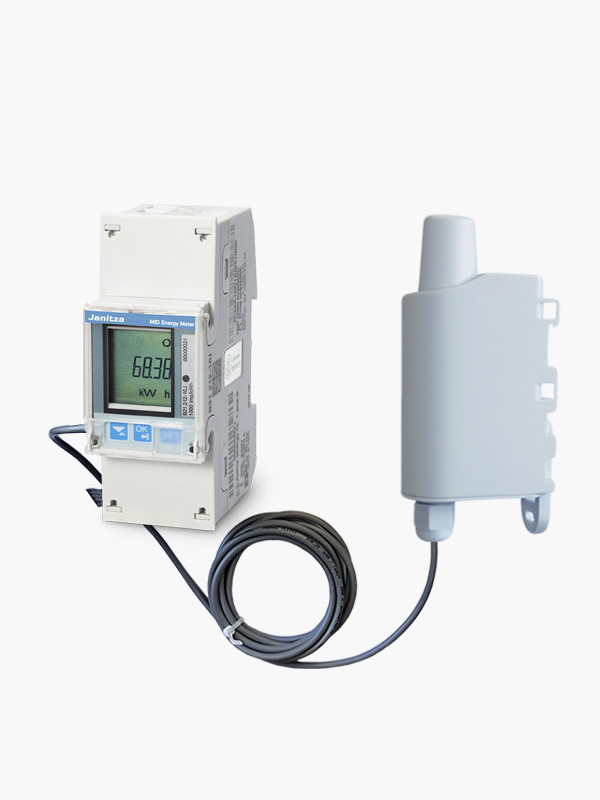

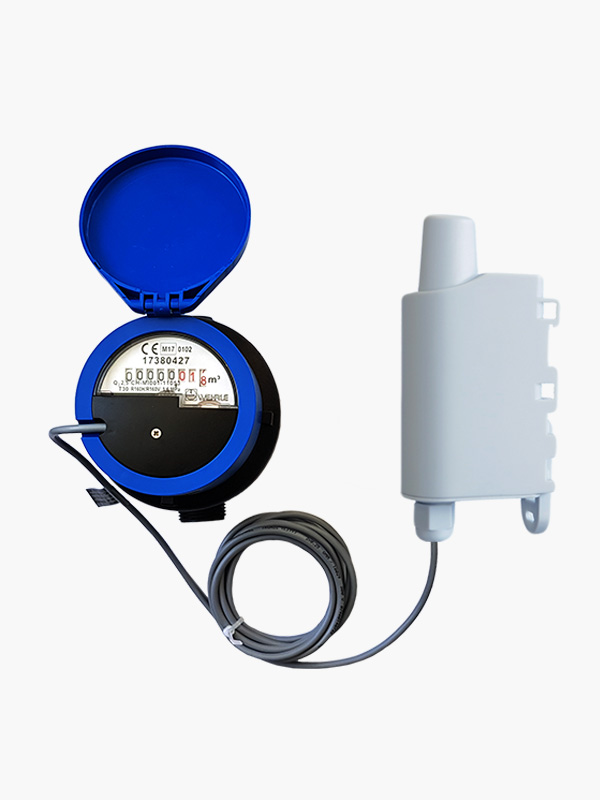

The ARF8230CA is a dual pulse totaliser with tamper inputs. 2 water-, gas- or energy-meters with pulse output can be connected. Different operation modes are available.
- Pulse counting
- Counting with History
- Counting with tamper alarm
ADDITIONAL INFORMATION
| Sensor Type | |
|---|---|
| Sigfox | |
| Pulse Counter | |
MAIN FEATURES
- 2 pulse inputs
- 2 tamper inputs
- Leak detection
- Flow monitoring
- Configuration via mini USB
- Optimized battery management
SPECIFICATIONS
| Protection rating | IP67 |
| Dimensions LxWxH | 105x50x27 |
| Operating Temperature | -20 … +75 °C |
| Mounting | DIN Rail, Tube and Wall mounting |
| Weight | 80g |
| Power Supply | Internal 3.6 Lithium Battery |
| RF-Input sensitivity | -126 dBm |
